Checkweigher

Summary

The ‘Checkweigher’ report can be used to generate a report that charts all the weights registered by Terminal during a single SPC run.

Report Setup

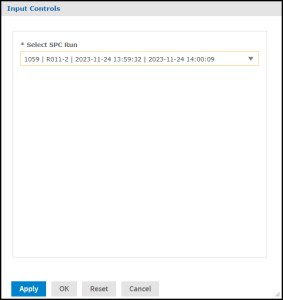

This report can be found under the ‘SPC’ header in the Jasper Reports suite, and if we select it we will see the following options for running it.



As we can see here, we only have the option to select a specific SPC run to report on. A search box can be used to quickly find a specific SPC run or one can be selected from the drop-down menu.

Sample Report

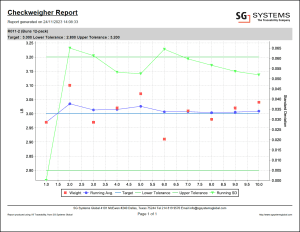

If we run the report as we have set it up in the image above, we will generate one that looks like this:



As we can see this produces a graph that shows each weight taken, the set target and tolerances, as well as a running average and standard deviation line.

Links To

This particular report does not contain links to any others.
