The Allergens section in Control Center can be set up and used to present operators with on-screen warnings when handling ingredients that belong to Allergen groups. When Allergens are handled within the manufacturing process, the system will, by default, present warning screens and print the Allergen Group on the stage label.

This page provides a basic overview of the ‘Allergens’ section in Control Center, and will help guide you through the various columns that define its settings. For a more in-depth look at how to set up and use ‘Allergens’, click here.

For more information on how the your business can benefit from the V5 Traceability Allergen Management System, click here.

Control Center Overview

The ‘Allergens’ section can be found under the ‘Quality’ header of Control Center.

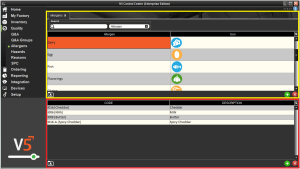

This section is split up into 2 panels:

  • Top (yellow) panel: This is where new Allergen groups can be added to the system.
  • Bottom (red) panel: This is where commodities can be added to the Allergen group currently selected in the top panel.

Column Help – Top Panel


Custom text entry to describe the Allergen group. This is what will be printed on any stage labels.


Where we can upload a custom icon that will be displayed to operators when this Allergen is handled.

Column Help – Bottom Panel


The commodity code of the commodity that is in the Allergen group selected in the top panel. This can be manually typed in or selected from the drop-down menu.


The description of the selected commodity. This is populated from ‘Commodities’ and cannot be edited here.
