The ‘Job Log’ section of the V5 Control Center allows users to view the results of jobs that have been undertaken across the production facility. This aggregates all of the batch data for the job and displays formula step addition totals.
Control Center Overview
The ‘Job Log’ section of the V5 Control Center allows users to view the results of jobs that have been undertaken across the production facility. This aggregates all of the batch data for the job and displays formula step addition totals.

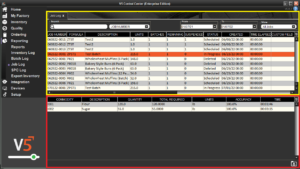

This section is made up of 2 panels:
Top (yellow) panel: Provides a list of jobs that are in the production plan (this includes active jobs).
Bottom (red) panel: With a job selected in the top panel, this panel will show an aggregated view of formula step production.
The job number generated/assigned when the job was first created.
Formula
The formula code produced in that job.
Description
The formula description of the produced formula.
Units
The total number of units in that job.
Batches
How many batches of the formula were scheduled for the job.
Remaining
The number of batches remaining for the job.
Suspended
The number of batches suspended by the job.
Status
The current status of the job. These are:
Pending – Not active yet, this status is given when jobs are ‘created’ in the production plan.
Scheduled – The job is active and will be visible to relevant Terminals.
Hold – The job is on hold/suspended.
Testing – Similar to hold, this indicates the job is suspended for testing.
Complete – The job is complete.
Created
Date and timestamp to say when the job was created.
Time Elapsed
The amount of time spent on the job.
Custom Fields 1-10
Bespoke data fields, the contents of these fields can be printed on labels during production.
Column Help – Bottom Panel
Commodity
The commodity code of the commodity consumed in this formula step.
Description
The name of the commodity consumed in this formula step.
Quantity
The actual quantity of the commodity consumed at this formula step.
Total Required
The requested quantity of the commodity for this formula step.
Units
The Unit of Measure of the formula step.
Accuracy
A percentile of the operator’s weighing accuracy for this step.
Time
The time for this step to have been completed across all batches.
